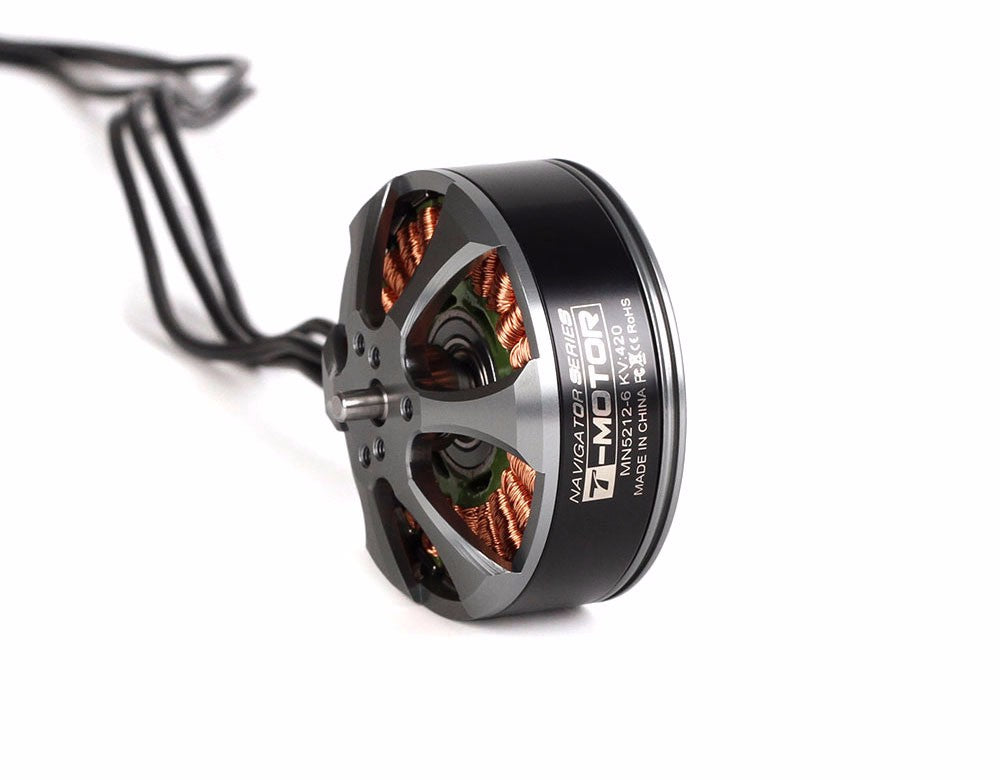

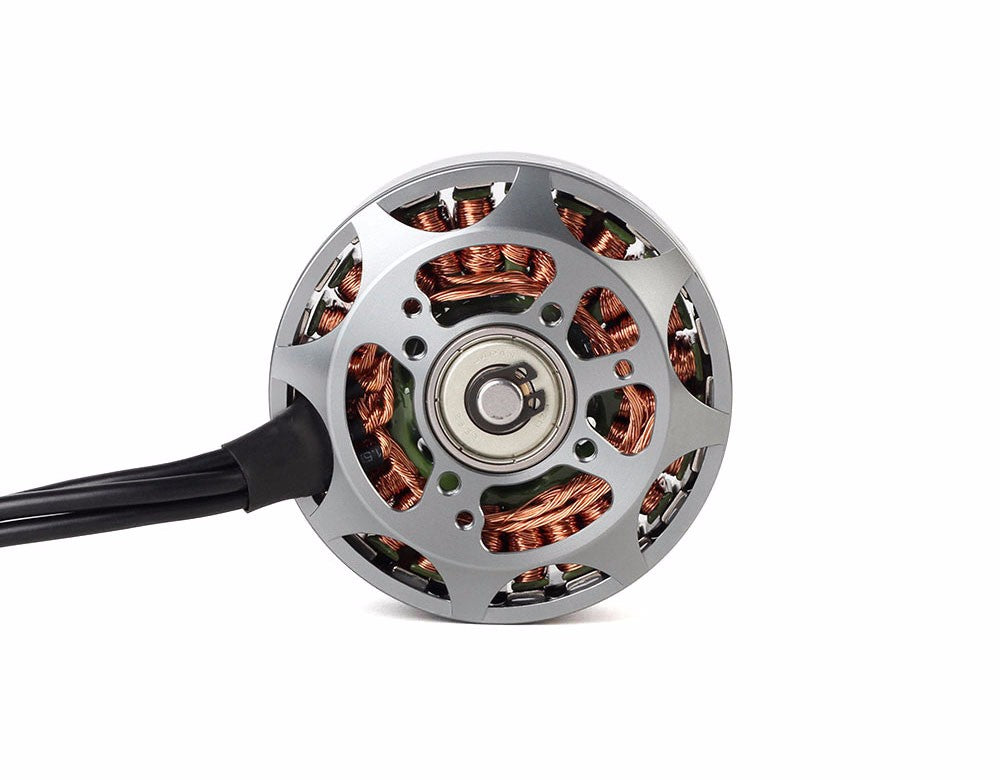

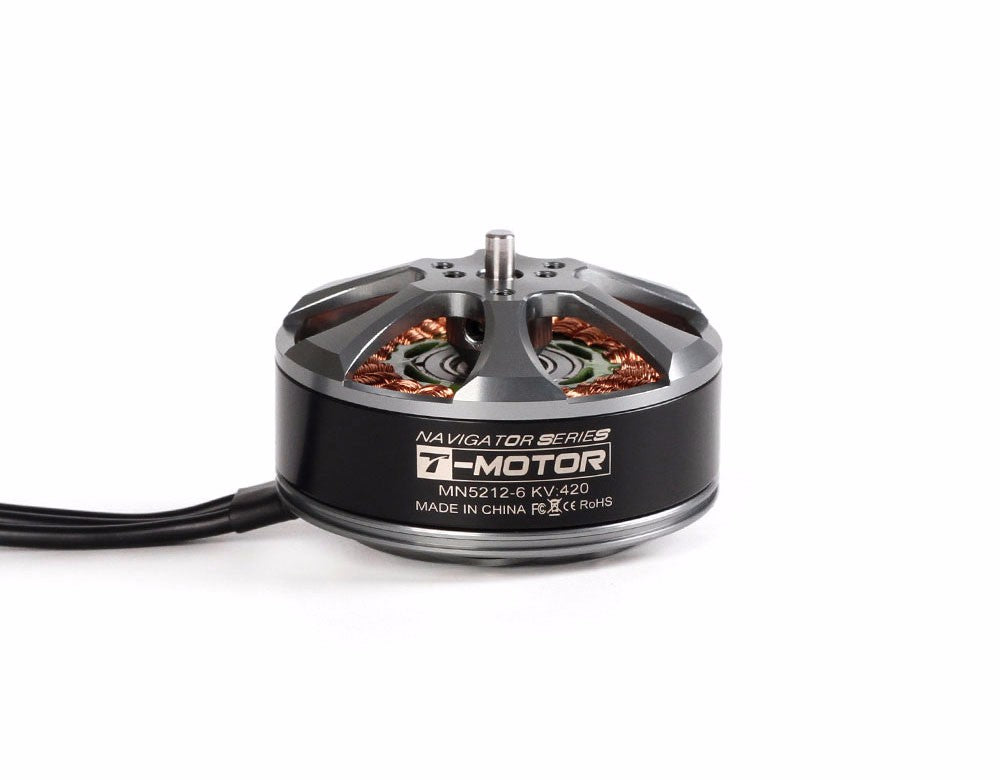

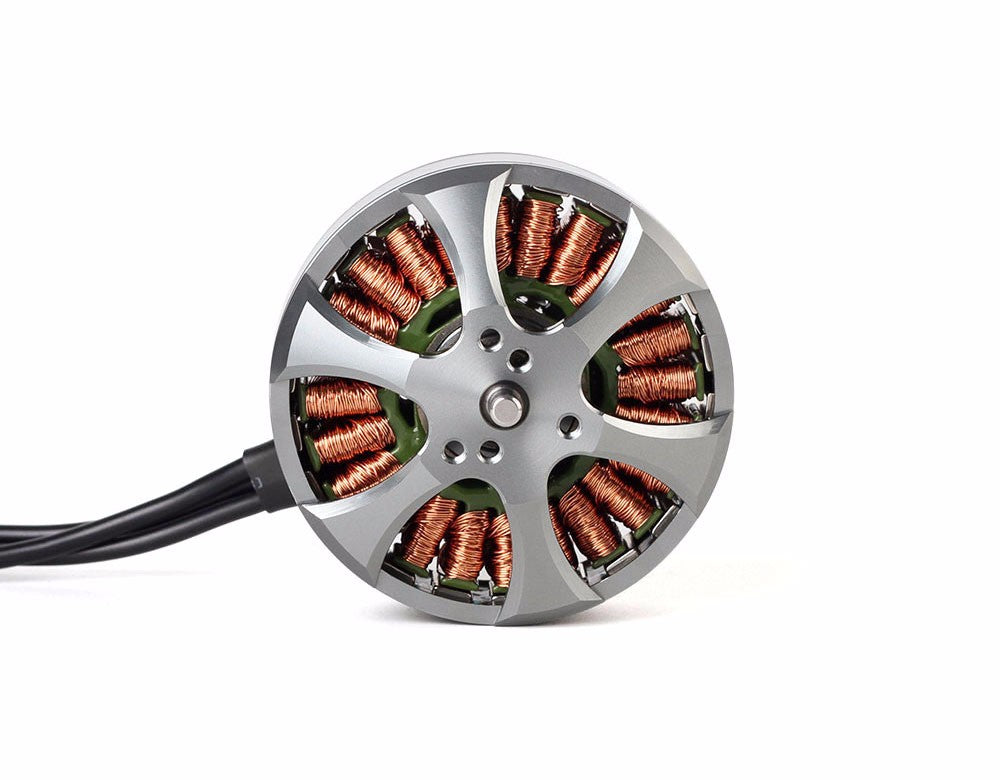

About T-MOTOR MN5212 Multirotor Fixed Wing UAV Motor

T-Motor MN5212 Navigator UAV Motor offers 7kg thrust, precise assembly, and excellent dynamic balance. With high-speed response and efficient cooling, it ensures stable performance.

Featuring an MTBF of 1000 hours, it's ideal for multi-rotor applications. Regular lubrication is recommended for maintenance.



Navigator MN5212  Highlights:

  • Max. thrust：4.3kg

  • MTBF： About 1000 hours

  • Features： Precisely Assembling Process; High Speed of Response



Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

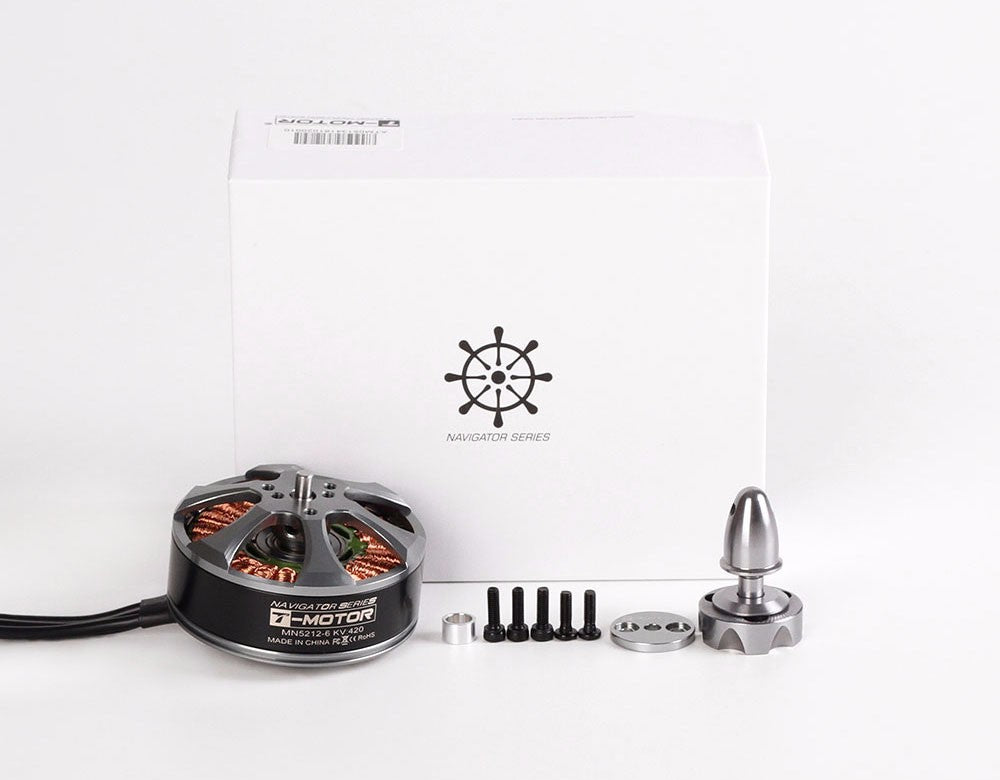

Packing List Includes:

1x T-MOTOR MN5212 Motor KV340( kv which you choose)

1x Hardware pack


Matching Guide:

T-MOTOR P17*5.8 Prop / Air 60A 2-6S ESC / ALPHA 40A 6S ESC

Technical Drawing


Specification

Test Item MN5212 KV340 Report NO. MN.00030
Internal Resistance 69mΩ Configuration 24N22P
Shaft Diameter 4mm Motor Dimensions Φ59×33.5mm
Stator Diameter 52mm Stator Height 12mm
AWG 16# Cable Length 600mm
Weight Including Cables 249g Weight Excluding Cables 205g
No.of Cells(Lipo) 4-8S Idle Current@10v 1.1A
Max Power (180S) 840W Max Continuous Current 180S 35A
Test Item MN5212 KV420 Report NO. MN.00030
Internal Resistance 69mΩ Configuration 24N22P
Shaft Diameter 4mm Motor Dimensions Φ59×33.5mm
Stator Diameter 52mm Stator Height 12mm
AWG 16# Cable Length 600mm
Weight Including Cables 249g Weight Excluding Cables 205g
No.of Cells(Lipo) 4-8S Idle Current@10v 1.1A
Max Power (180S) 1440W Max Continuous Current 180S 60A

Test Data

Item No. Voltage
(V)		 Prop Throttle Current
(A)		 Power
(W)		 Thrust
(G)		 RPM Efficiency
(G/W)

Torque
(N*m)

 Operating
Temperature
(℃)

MN5212

KV340

 24

T-MOTOR

15*5CF

 50% 3.3 79.0 745 3821 9.44 0.142 38
55% 4.2 99.8 910 4220 9.11 0.172
60% 5.2 123.6 1075 4576 8.70 0.198
65% 6.3 150.7 1254 4925 8.32 0.232
75% 9.1 217.2 1681 5663 7.74 0.31
85% 12.2 292.1 2115 6315 7.24 0.382
100% 17.8 426.7 2746 7167 6.44 0.498

T-MOTOR

16*5.4CF

 50% 3.9 93.4 942 3767 10.09 0.187 49
55% 5.1 121.2 1145 4130 9.45 0.227
60% 6.2 149.3 1338 4510 8.96 0.261
65% 7.8 188.2 1560 4862 8.29 0.303
75% 11.1 266.2 2110 5565 7.93 0.405
85% 15.2 363.8 2648 6217 7.28 0.509
100% 21.6 518.2 3445 7063 6.65 0.66

T-MOTOR

17*5.8CF

 50% 4.7 112.3 1095 3651 9.75 0.225 53
55% 6.0 144.2 1320 4017 9.15 0.27
60% 7.8 187.4 1625 4432 8.67 0.331
65% 9.6 230.2 1875 4772 8.15 0.381
75% 13.7 327.6 2363 5390 7.21 0.49
85% 18.1 434.6 2871 5960 6.61 0.593
100% 26.1 626.9 3716 6660 5.93 0.761

T-MOTOR

18*6.1CF

 50% 5.7 137.5 1318 3596 9.58 0.29 74
55% 7.4 178.1 1612 3958 9.05 0.344
60% 9.3 222.0 1901 4310 8.56 0.411
65% 11.6 278.2 2259 4622 8.12 0.472
75% 16.5 395.5 2835 5226 7.17 0.605
85% 22.1 531.1 3477 5751 6.55 0.737
100% 31.0 744.7 4355 6358 5.85 0.918
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

MN5212

KV420

 24

T-MOTOR

15*5CF

 50% 6.8 162.2 1204 4976 7.42 0.321 53
55% 8.7 208.1 1478 5487 7.10 0.278
60% 10.5 521.8 1746 5947 6.94 0.33
65% 12.6 302.2 1983 6376 6.56 0.374
75% 18.8 450.0 2589 7287 5.75 0.493
85% 25.0 599.0 3230 8042 5.39 0.607
100% 36.7 881.3 4175 9091 4.74 0.784

T-MOTOR

16*5.4CF

 50% 8.4 202.3 1530 4815 7.56 0.301 58
55% 10.4 250.6 1795 5210 7.16 0.354
60% 13.0 311.5 2160 5642 6.93 0.417
65% 15.7 377.3 2433 6032 6.45 0.475
75% 22.4 536.9 3150 6811 5.87 0.609
85% 29.8 715.7 3818 7489 5.33 0.743
100% 44.2 1061.5 4903 8455 4.62 0.965

T-MOTOR

17*5.8CF

 50% 10.5 250.8 1795 4696 7.16 0.376 75
55% 12.8 306.0 2075 5103 6.78 0.442
60% 15.9 382.3 2458 5509 6.43 0.514
65% 18.9 452.6 2745 5849 6.06 0.576
75% 27.2 651.8 3576 6560 5.49 0.747
85% 36.4 872.4 4324 7209 4.96 0.892
100% 51.6 1237.9 5359 7943 4.33 1.117

T-MOTOR

18*6.1CF

 50% 12.4 296.6 2110 4558 7.11 0.45 84
55% 15.3 366.5 2468 4908 6.73 0.528
60% 18.6 446.9 2820 5276 6.31 0.608
65% 22.9 549.1 3215 5612 5.86 0.703
75% 32.5 779.5 4142 6226 5.31 0.881
85% 41.9 1006.1 4885 6785 4.86 1.044
100% 59.9 1436.6 5918 7440 4.12 1.278
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
